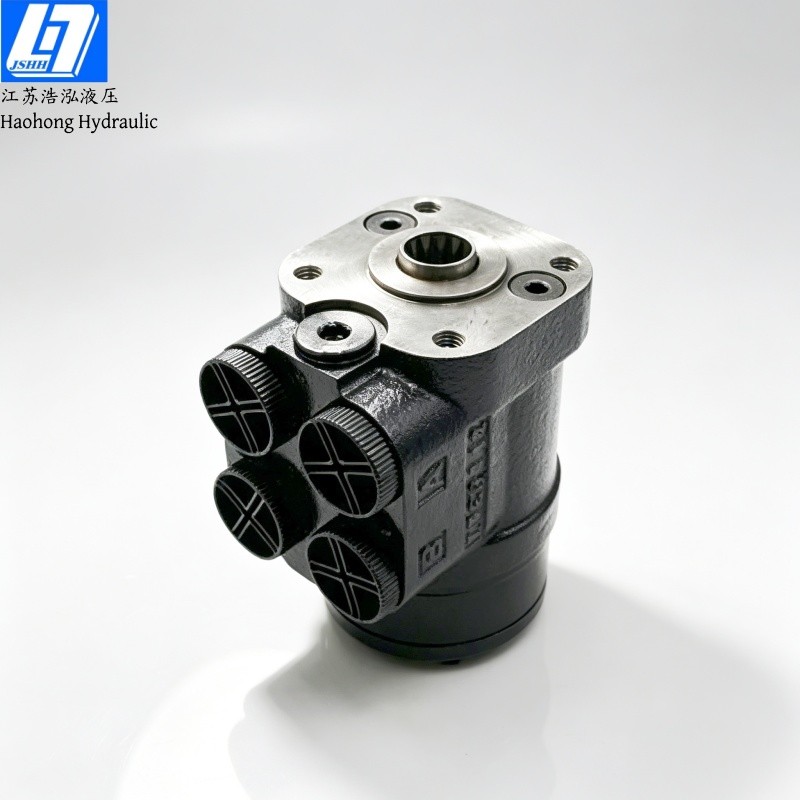

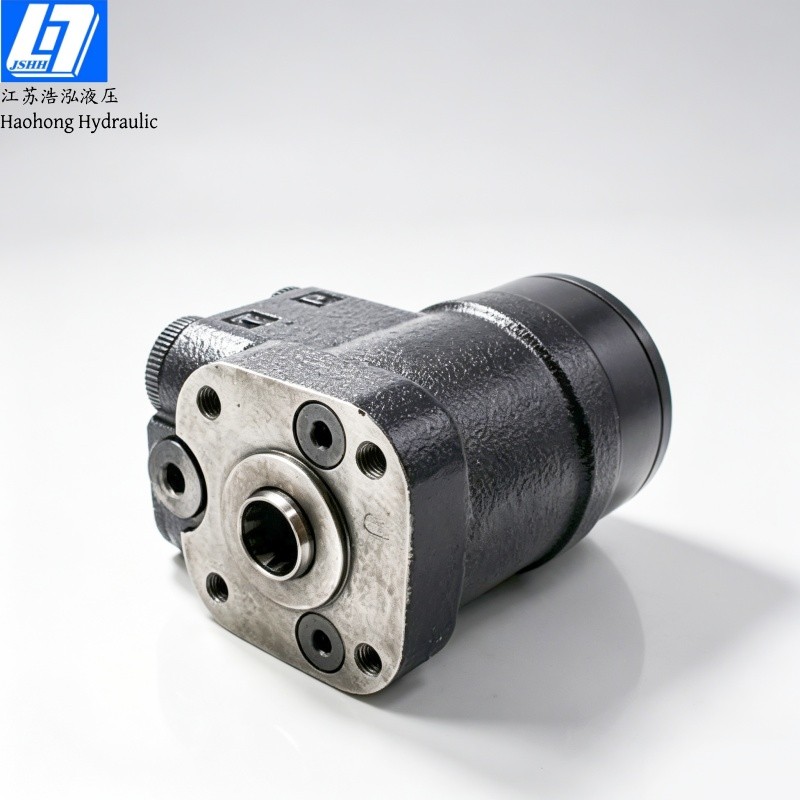

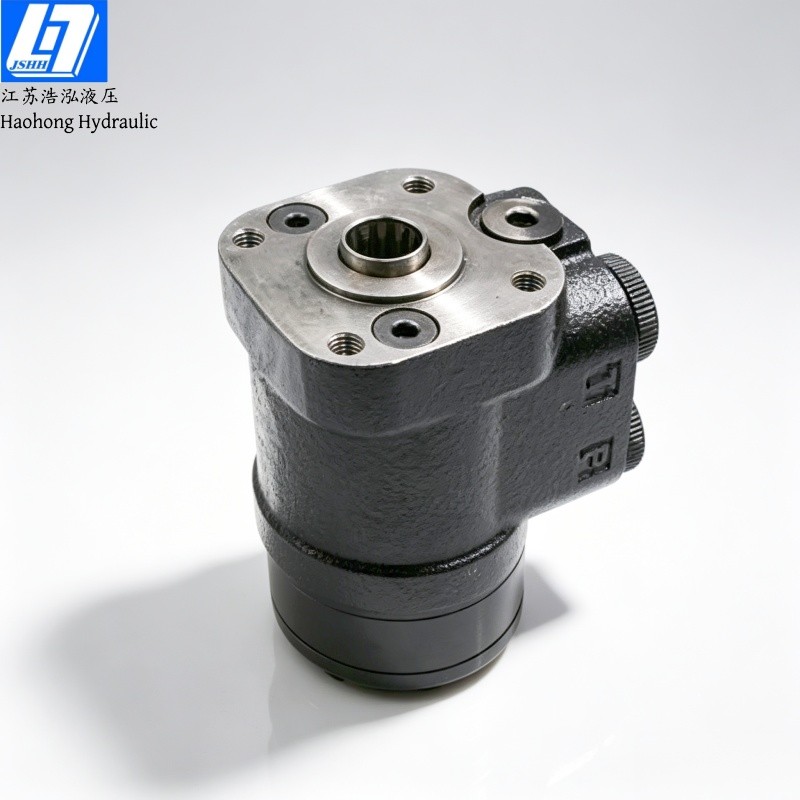

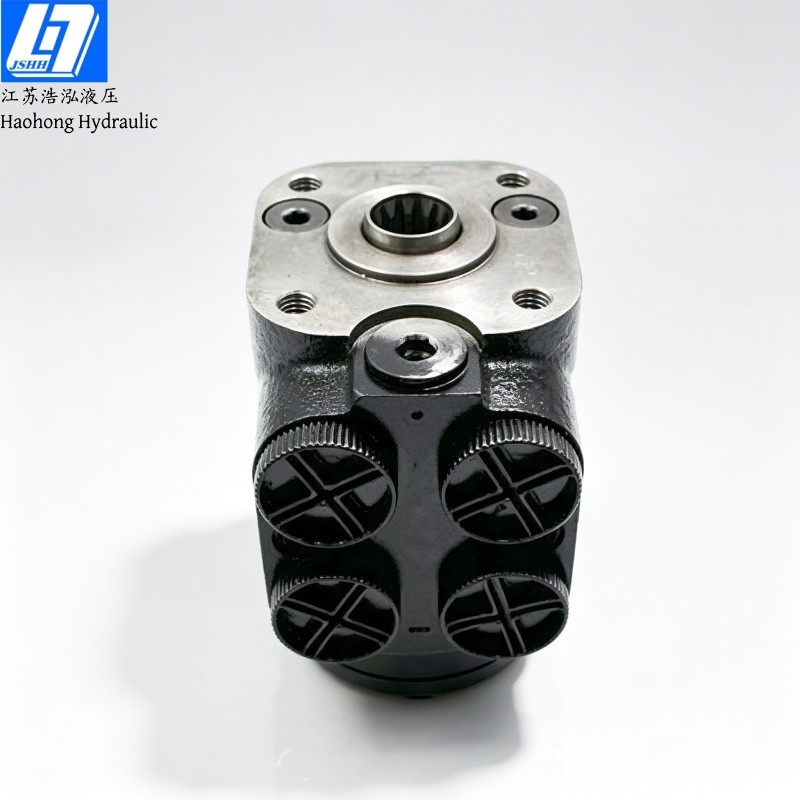

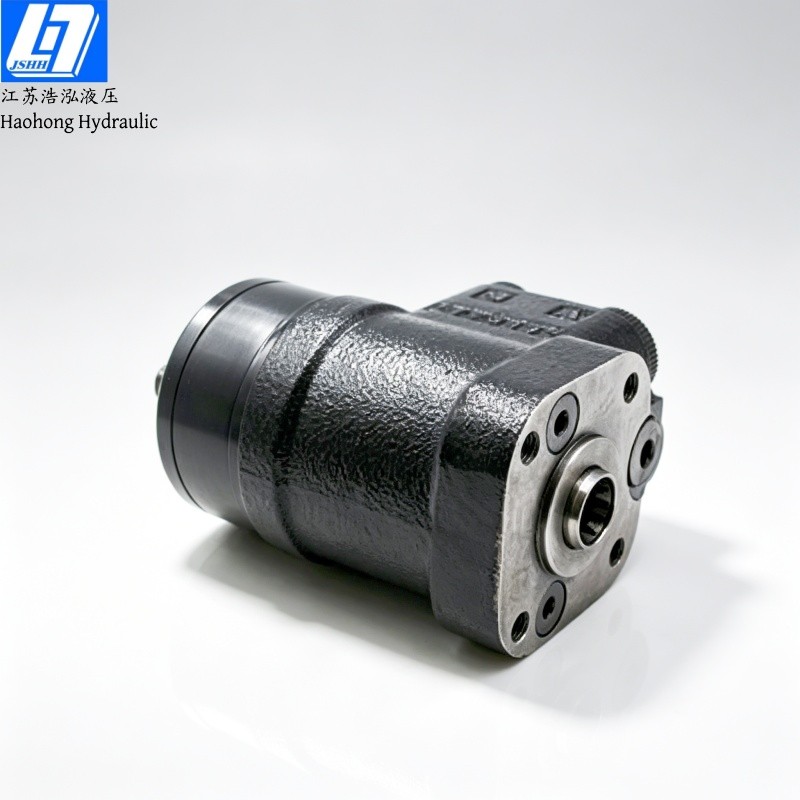

101S-1,2,4 Series Hydraulic Steering Control Units (SCU)
| Parameters | Type 101S-*-***-* | ||||||||||

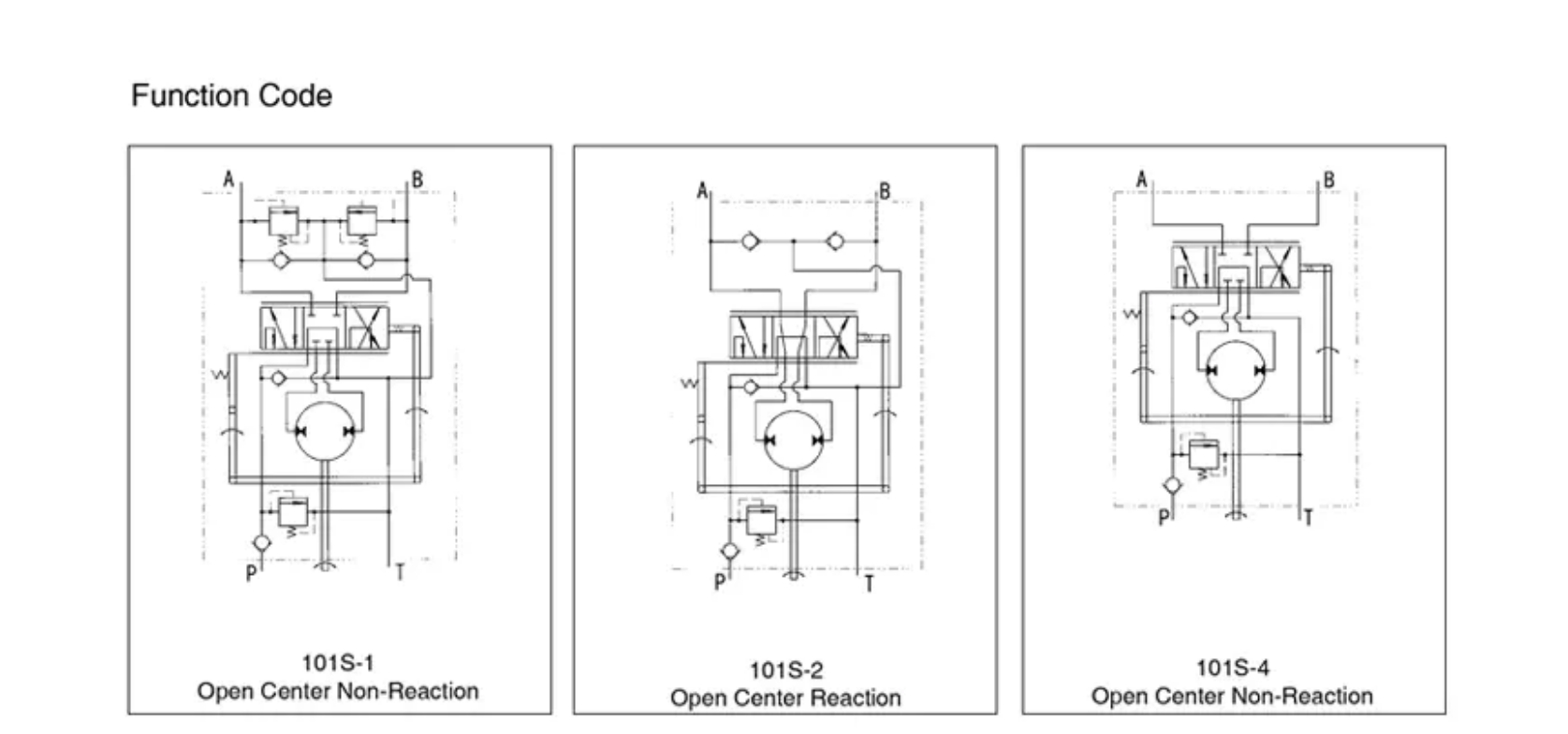

| Function Code | 1,2,3 | 1,3 | |||||||||
| Displacement(mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 31.5 | 40 |
| Max. input pressure (MPa) | 17.5 | ||||||||||
| Relief Valve Pressure Settings（Mpa） | 06,07,08,10,12,14,15,16,17.5 | ||||||||||
| Shock Valves Pressure Settings（Mpa） | 12,13,14,16,18,20,21,22,23.5 | ||||||||||
| Max. cont. back pressure (MPa) | 2.5 | ||||||||||
| Weight (kg) | 5.70 | 5.76 | 5.84 | 5.91 | 6.05 | 6.25 | 6.45 | 6.68 | 6.86 | 7.06 | 7.45 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
